- Place of Origin: China
- Brand Name: Xin Ma Test Instrument
- Model Number: 1
product description:
product manual:

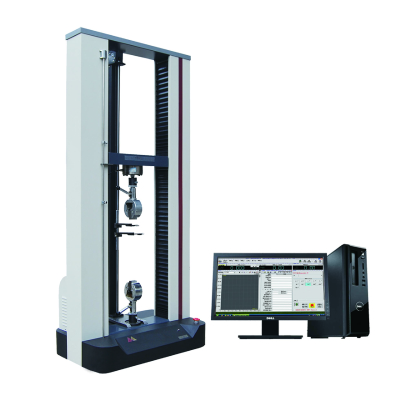

This series of electronic universal testing machine is a double leadscrew (T-lead screw or roller screw). This product integrates control, measurement, operation and modern advanced technology. The control system adopts computer and MCU interchange control. All digital AC servo motor and drive. This product is suitable for non-metallic materials such as rubber, plastic, paper, leather, metal wire, fabric, cord, tape tensile, compression, bending test test. The product has high precision, smooth operation, low noise, is an ideal alternative to import products.
Standards compliant:
GB / T1040, 1042,8804.1, 8804.2, 9647, GB16491, GB / T17200, ISO7500-1, ISO5893, ASTM D638,695,790.
Technical Parameters:
The maximum test force: 5kN, 10kN, 20kN, 30KN, 50KN
Effective force range: 0.4% ~ 100% FS (not file)
Force indication relative error: ± 0.5%
Test speed range: 0.5 ~ 500mm / min (stepless speed regulation, arbitrarily set)
Speed indication relative error: ± 0.5%
Displacement resolution: 0.01mm, 0.001mm
Displacement indication relative error: ± 0.5%, ± 0.2%
Large deformation resolution: 0.001mm
Large deformation indication relative error: ± 0.5%
Test area width: 410mm
Maximum travel of the moving beam: 1100mm
Accessories: with tensile fixture, bending device, compression device
