- Place of Origin: China
- Brand Name: Xin Ma Test Instrument
- Model Number: XJJ-50G
First, the product description:

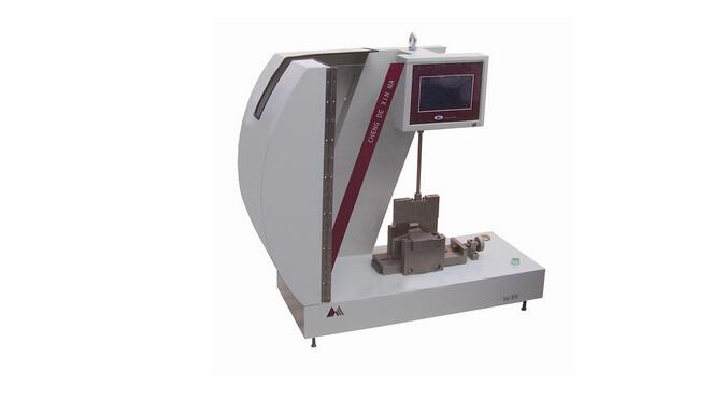

The main technical parameters of XJJ-50G series of simply supported beam impact testing machine are in full compliance with the requirements of ISO 179, GB / T 18742, GB / T 2612, JB / T 8762 and GB 4742 and applicable to various tests specified in GB / T 18742. Like the impact test, when the replacement of different jaws, and then adjust the jaws of the seat can do all kinds of pipe impact test. Is a simple structure, easy operation, accurate data, reliable detection equipment.
Second, the technical parameters:
1, the main technical indicators
The impact speed is 3.8m / s
Pendulum energy 15J, 50J
Pendulum torque Pd7.5 = 4.01924Nm Pd15 = 8.03848Nm Pd25 = 13.39746Nm Pd50 = 26.79492Nm
Striking center distance 395mm
The pendulum angle is 150 ° or 160 °
Blade radius R = 2 ± 0.5mm
Radius of the radius of the jaw is R = 1 ± 0.1mm
Impact blade angle of 30 ± l °
Pendulum hammer impact energy loss of 0.5%
Support line between the impact of the special jaw pipe
2, touch screen display. : The impact energy of 1/250
